Equipped with high-precision X-ray imaging, the system identifies foreign objects such as glass, bone, stone, and metal, even within aluminum or metallized film packaging. Designed for HACCP/CCP compliance, it also detects packaging defects and ensures reliable, efficient quality control.

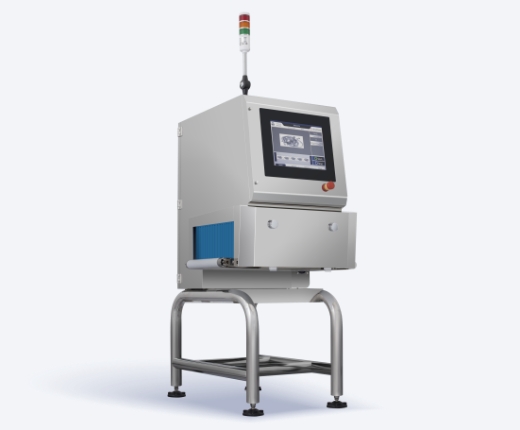

| Model | WT8051-XM1 | |
| X-ray Source | 350W max,80kV/8.0mA, Adjustable | |
|---|---|---|
| Belt Width(mm) | 510 | |
| Tunnel Width(mm) | 400 | |
| Tunnel Height(mm) | 200 | |
| Conveyer Belt Speed (m/min) | 10-60 (Adjustable) | |
| Sensitivity of Detection | SUS304-ball(φ) | 0.3mm |
| SUS304-line | 0.2x2mm | |
| Glass-ball(φ) | 0.8mm | |
| Ceramic-ball(φ) | 0.8mm | |
| Dimension (mm) | 1200x1050x1650 | |
| Maximum Load Capacity (kg) | 10 | |
| Power Supply | AC220+10%, 50/60Hz, 2kw/2.5kw | |
| Weights(kg) | / | |
| DUT Status | Packaging / bulk | |
| Safety | ≤1µSv/h, X-ray leakage is prevented by safety devices | |
| Optional Configurations | ||
| Rejecting Way | Stop / Two way / T-pusher / Air blower / Side down | |
| Alarm | Sound and light alarm | |
| Conveyor Belt Material | Food Grade PU Material | |
| Touch Screen | 15 inch touch screen | |
| Operation Mode | Touch Input | |
| Protection Level | Tunnel IP65; The rest IP54 | |
| Connector | LAN port , USB port | |
| Languages | Chinese / English | |
Notes
1. The above accuracy is for an empty machine state, the actual detection accuracy is subject to the substance.
2. The above machines are standard models, other sizes and special requirements can be customized.
3. If there are any updates, please consult the sales for details.
4. The accuracy depends on the substance and the working environment.
